Turnkey PCB Services: Design, Fabrication & Assembly (PCBA)
End-to-end circuit board engineering — from schematic capture and multi-layer layout to rapid prototype fabrication, component assembly (PCBA), and hardware bench testing.
Complete Hardware Lifecycle: Schematic to Assembled Board
Tamizh Tech provides turnkey Printed Circuit Board (PCB) services tailored for robotics controllers, embedded systems, industrial telemetry, and IoT hardware developers.
Instead of coordinating between separate design houses, board fabricators, and manual assembly technicians, our turnkey workflow covers schematic capture, multi-layer routing, Design for Manufacturing (DFM) verification, bare board fabrication, SMT/THT component assembly, and hardware power rail testing.
Turnkey PCBA Workflow
Single-source coordination from circuit schematic to assembled, tested boards.
Prototype to Small-Batch Runs
Supporting quick-turn 1-10 prototype boards to 100+ unit pilot production.
Hardware Bring-Up & Testing
Visual inspection, power rail continuity verification, and basic firmware flashing.
What We Provide
Practical, in-house technical capabilities backed by proven hardware methodologies and quality control.
Schematic Capture & Component Selection
Designing clean circuit schematics, selecting reliable in-production components, and generating verified Bills of Materials (BOM).
Multi-Layer PCB Layout & Routing
1-layer, 2-layer, and 4-layer PCB routing with proper ground planes, trace width calculation for high current, and noise isolation.
Design Rule Checking (DRC & DFM)
Validating minimum trace clearance, drill hole aspect ratios, annular rings, and solder mask expansion prior to fabrication.
Bare Board Fabrication
High-quality FR-4 glass epoxy fabrication with solder mask, crisp silkscreen legend, and Lead-Free HASL or ENIG gold finishes.
Surface Mount & Through-Hole Assembly (PCBA)
SMT solder paste stencil printing, reflow soldering, hand placement of fine-pitch ICs, and durable through-hole terminal soldering.

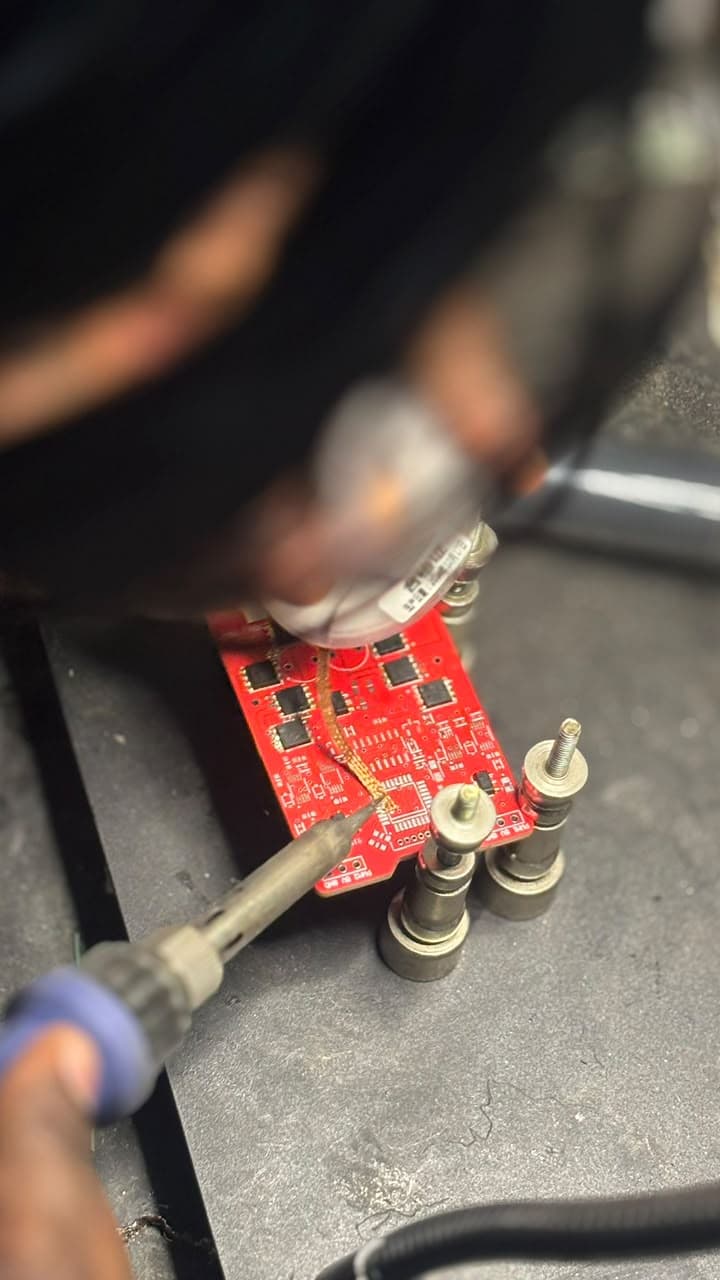

Bench Inspection & Hardware Bring-Up
Microscopic solder joint inspection, short-circuit continuity checks, DC power rail verification, and initial firmware loading.
PCB Specifications & Capabilities
Verified manufacturing specifications supported for prototype and small-batch orders:
Substrate & Layers
Standard FR-4 glass epoxy substrate available in 1-layer, 2-layer, and 4-layer configurations with controlled dielectric thickness.
Surface Finishes
Lead-Free HASL (Hot Air Solder Leveling) for standard boards, and ENIG (Electroless Nickel Immersion Gold) for fine-pitch surface-mount ICs.
Solder Mask & Legend
High-contrast solder masks (Standard Green, Matte Black, Blue, Red) with legible component silkscreen reference designators.
Typical Applications
Real-world applications across student engineering, collegiate laboratories, startups, and factory automation lines.
Robotics Motion Controllers & Drivers
Custom H-bridge motor driver boards, PWM distribution boards, and competition bot power distribution hubs.
Microcontroller Development Boards
Custom breakout and breakout boards for STM32, ESP32, RP2040, and Arduino architectures.
Industrial IoT & Telemetry Nodes
Sensor interface boards with RS485, CAN bus, LoRa, or Wi-Fi communication and power regulation.
Power Supply & Battery Management
Buck/boost DC-DC voltage regulators, Li-Po protection circuits, and high-current relay switching boards.
Sensor Interfacing & Signal Conditioning
Low-noise analog amplifier circuits, optical encoder breakout boards, and optoisolated I/O interfaces.
Engineering Workflow
A structured, repeatable engineering process from requirement submission to final dispatch or site commissioning.
Schematic & Architecture Review
Review your circuit concept, pin allocations, power requirements, and component footprints.
PCB Layout & Multi-Layer Routing
Component placement, trace routing, power planes, decoupling capacitor placement, and DRC validation.
Gerber & Manufacturing File Export
Generating standard RS-274X Gerber files, Excellon drill files, and Pick-and-Place centroid data.
Bare Board Fabrication
Precision substrate etching, via plating, solder masking, surface finishing, and flying probe testing.
Component Assembly (PCBA)
SMT stencil printing, component placement, reflow soldering, and manual through-hole connector soldering.
Hardware Bring-Up & Dispatch
Microscopic joint inspection, DC power rail validation, safe anti-static packaging, and tracked shipping.
What We Need From You
To provide a fast, accurate engineering review and quotation, share these essential details:
Schematic diagram, netlist, OR existing Gerber files (RS-274X ZIP)
e.g. gerber_files.zip or circuit_schematic.pdf
Component list with manufacturer part numbers, packages, and values (for PCBA)
e.g. bom_template.xlsx with MPNs
Number of layers (1, 2, or 4) and target PCB outline dimensions
e.g. 2-layer board, 60mm x 45mm
Full turnkey procurement by Tamizh Tech or client-supplied components
e.g. Turnkey procurement of all SMD parts
Number of bare boards or assembled boards required
e.g. 5 assembled prototype units
Have a question before submitting files? Our engineers can review your drawings directly.
Real Visual Proof
Actual machinery, completed customer hardware, and real fabrication from our Coimbatore engineering setup.

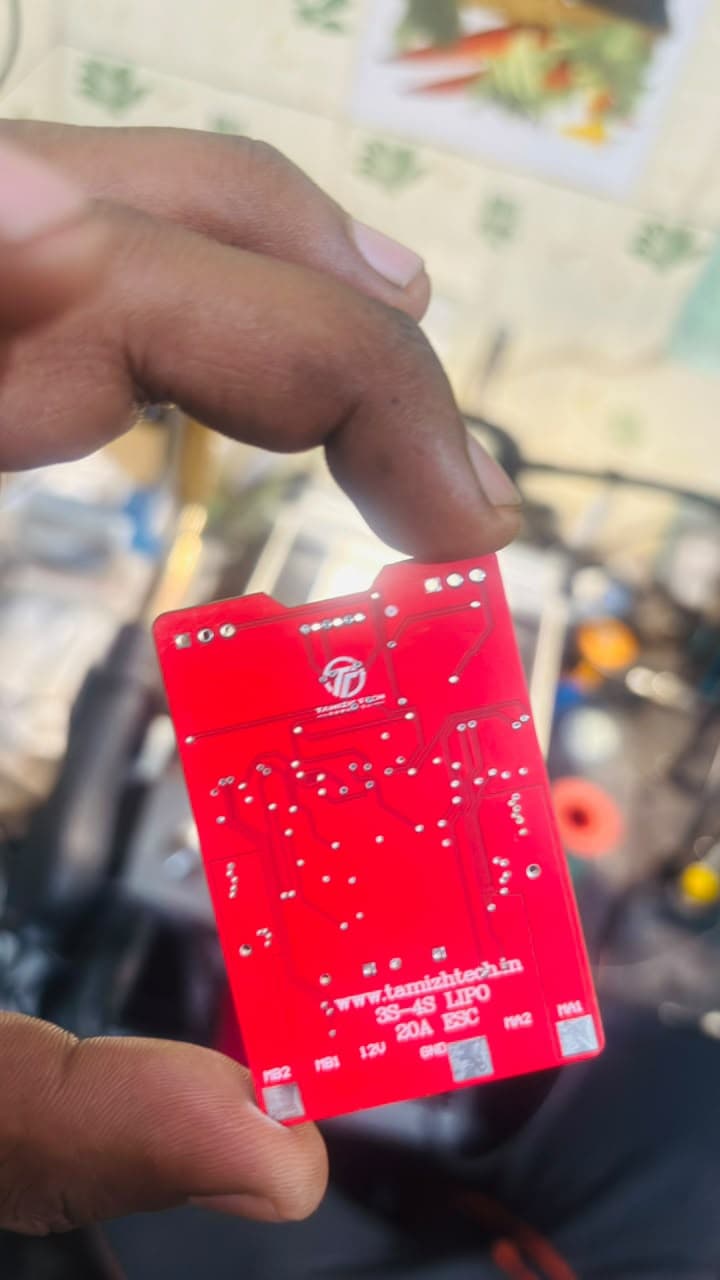

Multi-Layer PCB Design & Routing
High-density multi-layer routing, differential pair impedance matching, and ground plane design.

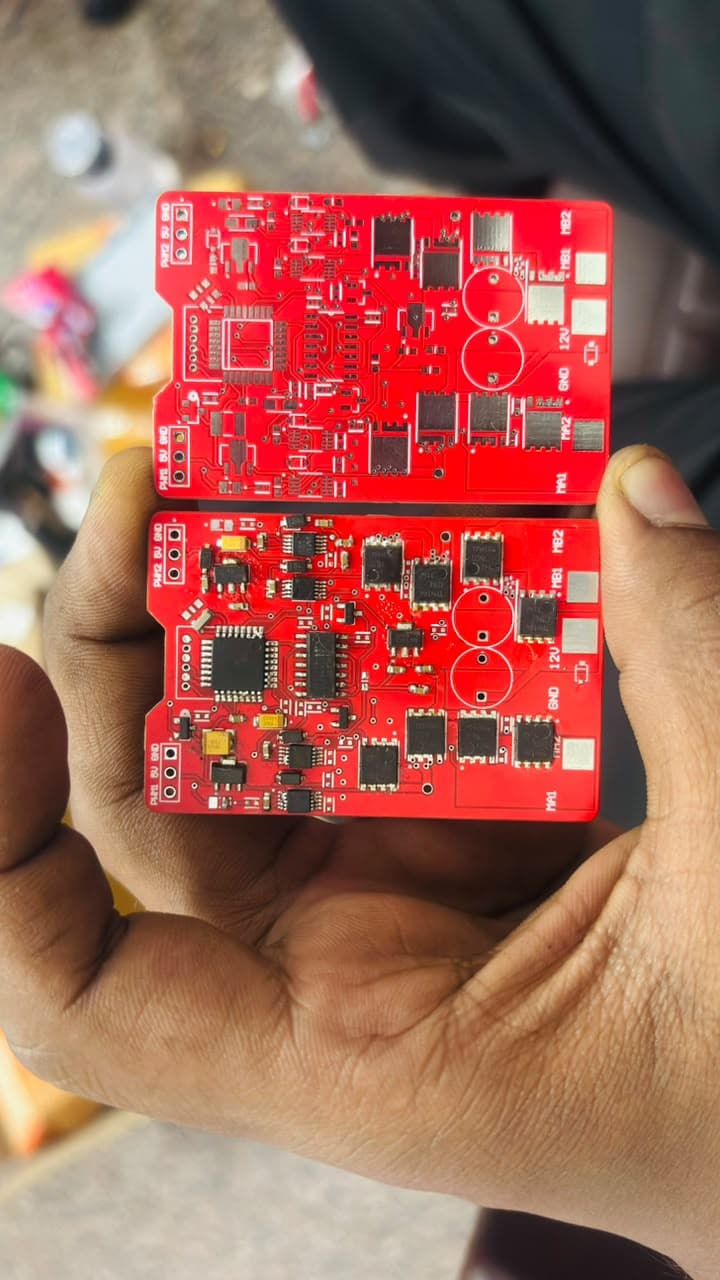

Assembled Hardware & PCBA Bring-Up
SMT assembled circuit boards with microcontrollers, power regulators, and communication transceivers.
Integrated Electronics in Robotic Systems
Custom motor drive and power distribution circuit boards mounted in operational hardware assemblies.
Related Capabilities & Products
Combine services for complete product engineering — from metal cutting and 3D printing to circuit design and robotics integration.
Robotics & Automation
Integrate your custom PCB into complete robotic chassis and autonomous platforms.
3D Printing Services
Fabricate tailored enclosures, mounting brackets, and standoffs for your custom circuit boards.
Industrial Automation
Interfacing custom sensor electronics with PLCs, SCADA dashboards, and 24V industrial controls.
Frequently Asked Questions
Direct, factual answers to real customer questions regarding files, materials, tolerances, and delivery.
Ready to Build Your Project?
Submit your 2D/3D drawings, schematics, or project parameters for an engineering review and transparent quote.
Direct engineering response • No speculative pricing • Genuine technical advice
